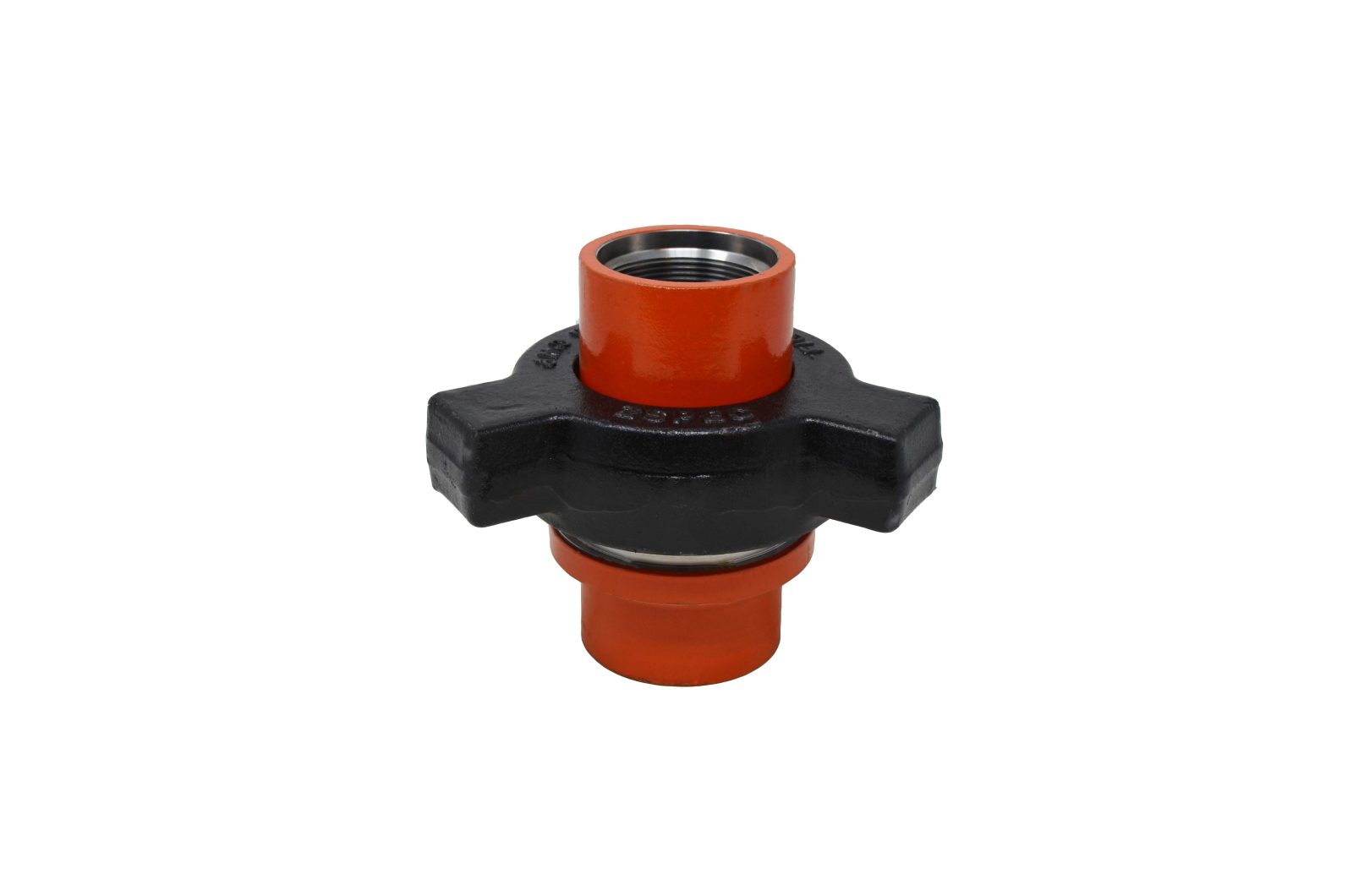

Figure 602
Product Description
ZSPEC Figure 602 Hammer Unions are suitable for oil, gas, water, and air service up to 6,000 PSI NSCWP. This union has a replaceable Buna-N lip-seal ring installed on the female sub, which serves as the primary seal. Threaded and butt weld end connections are available.
| Size | |
|---|---|
| Pressure | |
| End Connection | |
| Color |
Additional Info
Standard Service
Sub Material: Threaded – AISI 4130 (1″-2.5″), AISI 4140 (3″, 4″), Butt Weld – AISI 4130 (2″-4″)
Nut Material: Threaded – AISI 4140 (1″-4″), Butt Weld – AISI 4140 (2″-4″)
Available upon request:
Threaded – Female sub, male sub, snap ring, and nut components
Butt Weld – Female and male sub components in schedule 80 and XXH; schedule 160 unions and components are available in select sizes
Datasheet File
Hammer Unions
ZSPEC® Hammer Unions are manufactured from high quality forgings and castings. The figure appropriate materials are selected for each respective figure number. Threaded and Butt Weld end connections are both readily available. Material traceability and MTRS are available on all hammer unions.
