Figure 300
Product Description

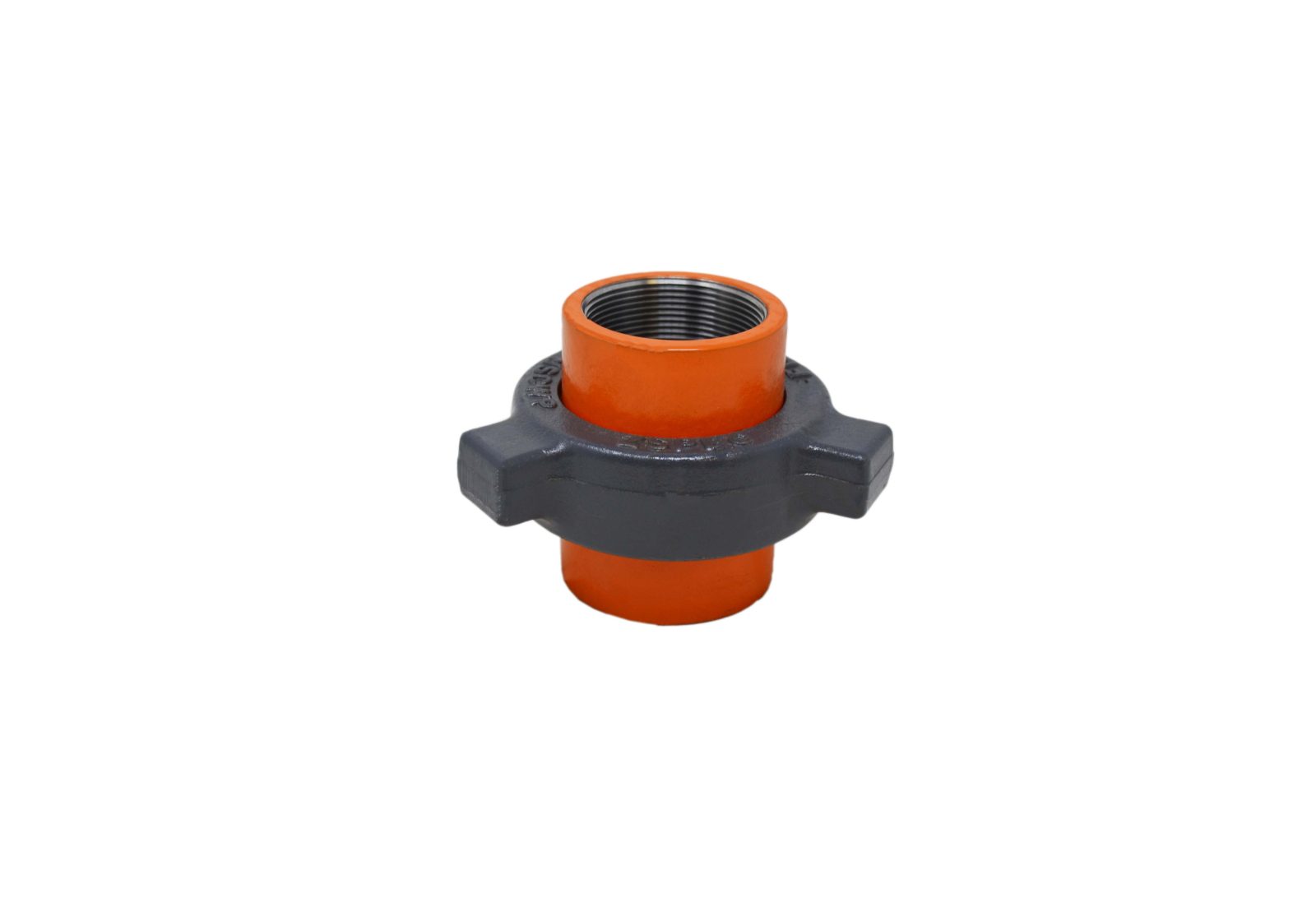

ZSPEC Figure 300 Hammer Unions are suitable for oil, gas, or water service and features a flat faced union connection with an ORing seal that allows for a straight breakout of short pipe segments. This union is available in 2,000 PSI NSCWP or 12,500 PSI NSCWP and is available with threaded end connections.
| Size | |
|---|---|
| Pressure | .5" and 1" – 12,500 PSI NSCWP, 1" – 2,500 PSI NSCWP, 2" – 2,000 PSI NSCWP |
| End Connection | |
| Color |
Additional Info
Standard Service
Sub Material: Threaded 2,000 PSI NSCWP – A105 (2″), Threaded 2,500 PSI NSCWP – A105 (1″), Threaded 12,500 PSI NSCWP -AISI 4140 (.5″, 1″)
Nut Material: Threaded 2,000 PSI NSCWP -A105 (2″), Threaded 2,500 PSI NSCWP -A105 (1″), Threaded 12,500 PSI NSCWP – AISI 4140 (.5″, 1″)
Available upon request:
Threaded – 316SS female and male subs; socket weld end connections; and buna ORings
Datasheet File
Hammer Unions
ZSPEC® Hammer Unions are manufactured from high quality forgings and castings. The figure appropriate materials are selected for each respective figure number. Threaded and Butt Weld end connections are both readily available. Material traceability and MTRS are available on all hammer unions.
