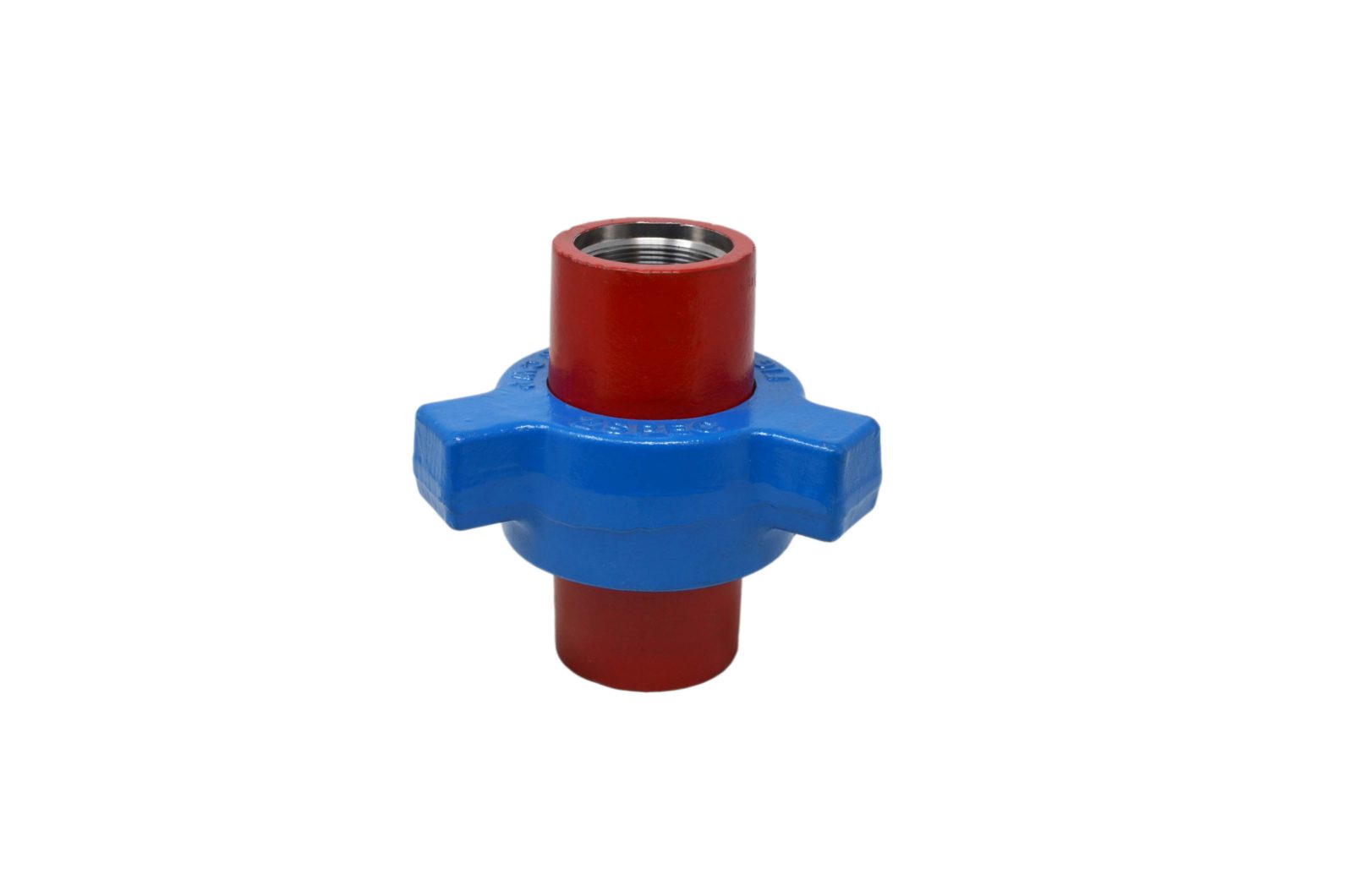

Figure 1502
Product Description
ZSPEC Figure 1502 Hammer Unions are suitable for oil, gas, water, air, and mud service up to 15,000 PSI NSCWP. This union features a replaceable Buna-N lip-seal ring on the female sub. These unions are recommended for manifolds, truck mounting, or other installations where extremely high pressures are encountered. Threaded and butt weld end connections are available.
Additional Info
Standard Service
Sub Material: Threaded – AISI 4130 (1″-4″), Butt Weld – AISI 4130 (2″-5″)
Nut Material: Threaded – AISI 4130 (2″-5″), Butt Weld – AISI 4140 (2″-5″)
Available upon request:
Threaded – Female sub, male sub, snap ring, and nut components; NPS unions in select sizes
Butt Weld – Female and male sub components in schedule XXH; schedule 160 unions and components in select sizes
Datasheet File
Hammer Unions
ZSPEC® Hammer Unions are manufactured from high quality forgings and castings. The figure appropriate materials are selected for each respective figure number. Threaded and Butt Weld end connections are both readily available. Material traceability and MTRS are available on all hammer unions.
