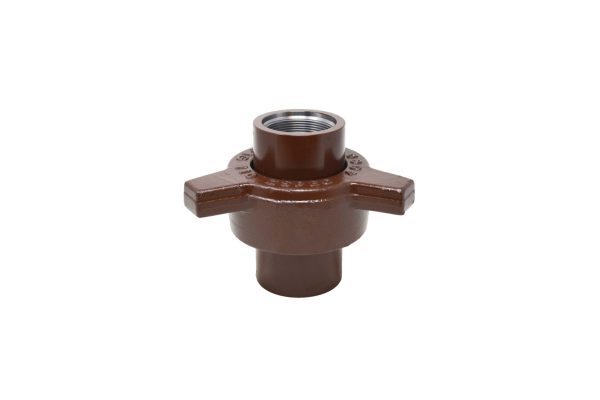

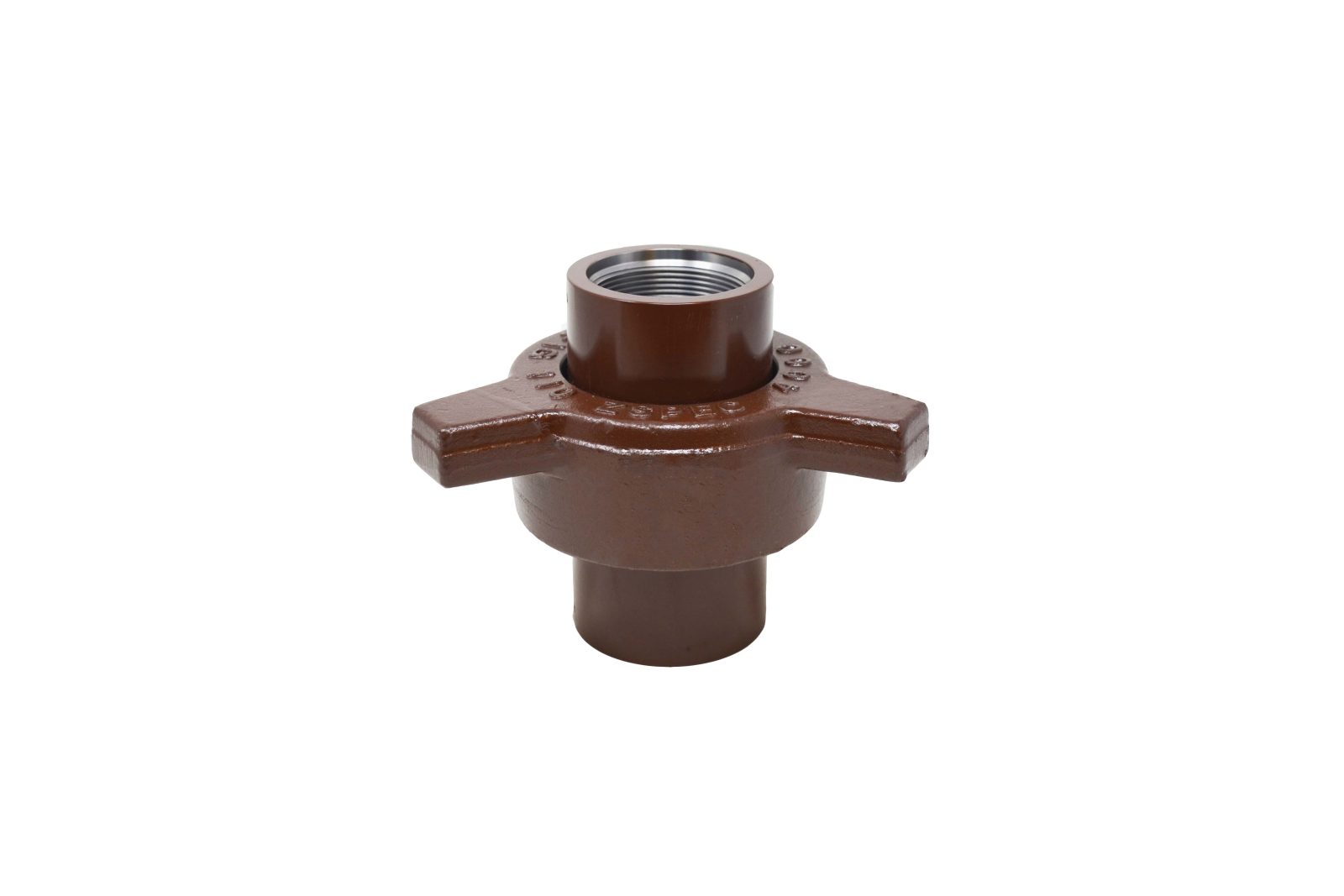

Figure 110
Product Description
ZSPEC Figure 110 Hammer Unions are recommended for 4,000 PSI NSCWP and used in flow lines to isolate for cathodic protection, or when electrical current may be required. The metal components are separated by two insulating ORings, one of which operates as a pressure seal for the union. The materials used for insulating the connection and dual ORings are impenetrable to flow and leaks, while also resistant to acids, chemicals, and temperatures during oil and gas production.
| Size | |
|---|---|
| Pressure | |
| End Connection | |
| Color |
Additional Info
Standard Service
Sub Material: Threaded – A105 (2″, 3″)
Nut Material: Threaded – A105 (2″, 3″)
Available upon request:
Threaded – Insulating repair kits (4,000 PSI NSCWP)
Datasheet File
Hammer Unions
ZSPEC® Hammer Unions are manufactured from high quality forgings and castings. The figure appropriate materials are selected for each respective figure number. Threaded and Butt Weld end connections are both readily available. Material traceability and MTRS are available on all hammer unions.
