Figure 1003
Product Description

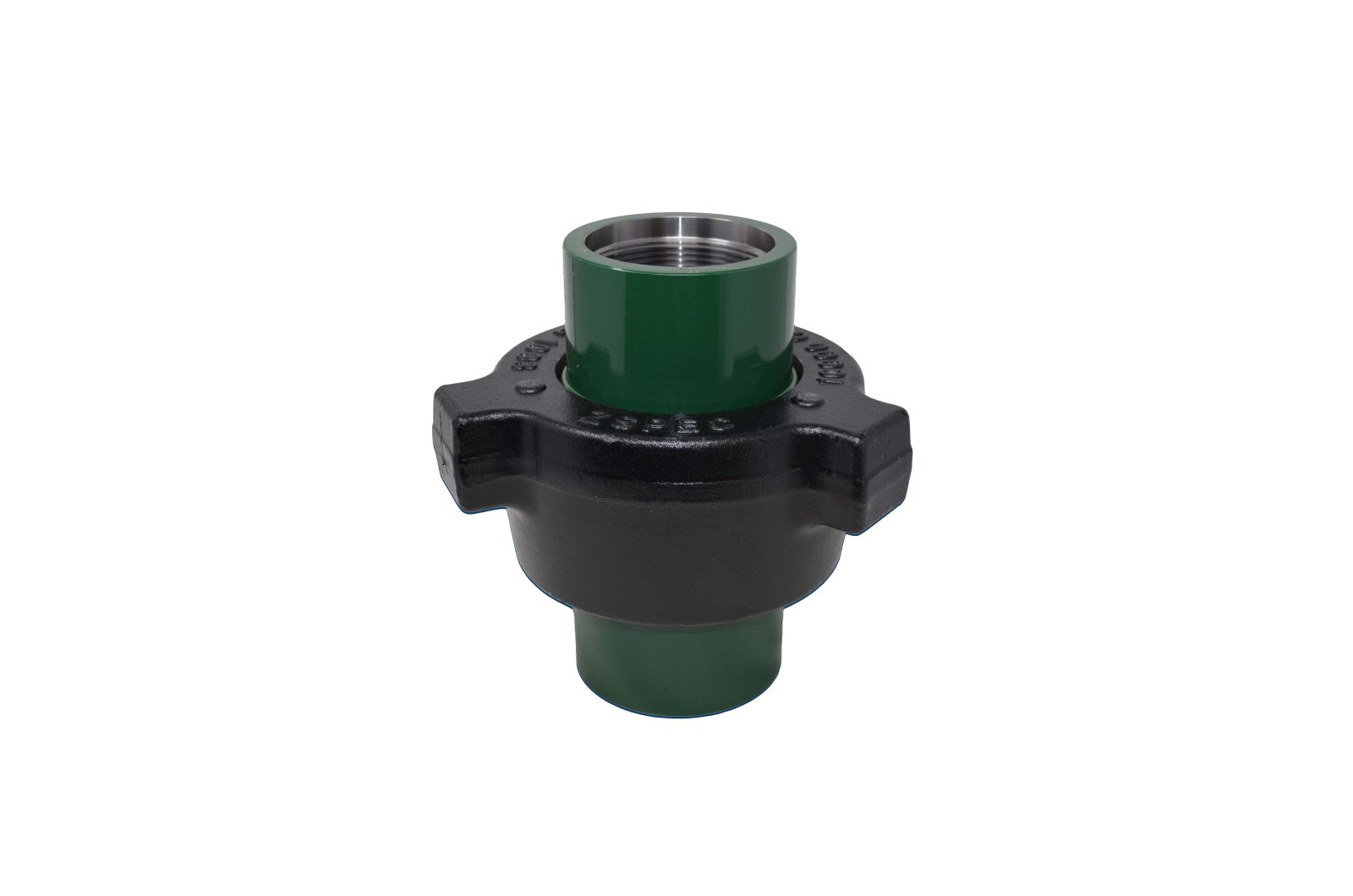

ZSPEC Figure 1003 Misaligning Hammer Unions feature a ball seat that allows for a 7-1/2 degree angular adjustment from the center (15 degrees total). This union also includes an ORing seal and metal to metal sealing surfaces to ensure a tight pressure connection. The 3″ size is rated at 10,000 PSI NSCWP. Threaded and butt weld end connections are available.
| Size | |
|---|---|
| Pressure | |
| End Connection | |
| Color |
Additional Info
Standard Service
Sub Material: Threaded – AISI 4130 (3″, 4″), Butt Weld – AISI 4130 (3″, 4″)
Nut Material: Threaded – AISI 4130 (3″-5″), Butt Weld – AISI 4140 (3″-5″)
Available upon request:
Threaded and Butt Weld – ORing components
Datasheet File
Hammer Unions
ZSPEC® Hammer Unions are manufactured from high quality forgings and castings. The figure appropriate materials are selected for each respective figure number. Threaded and Butt Weld end connections are both readily available. Material traceability and MTRS are available on all hammer unions.
