Figure 1002
Product Description

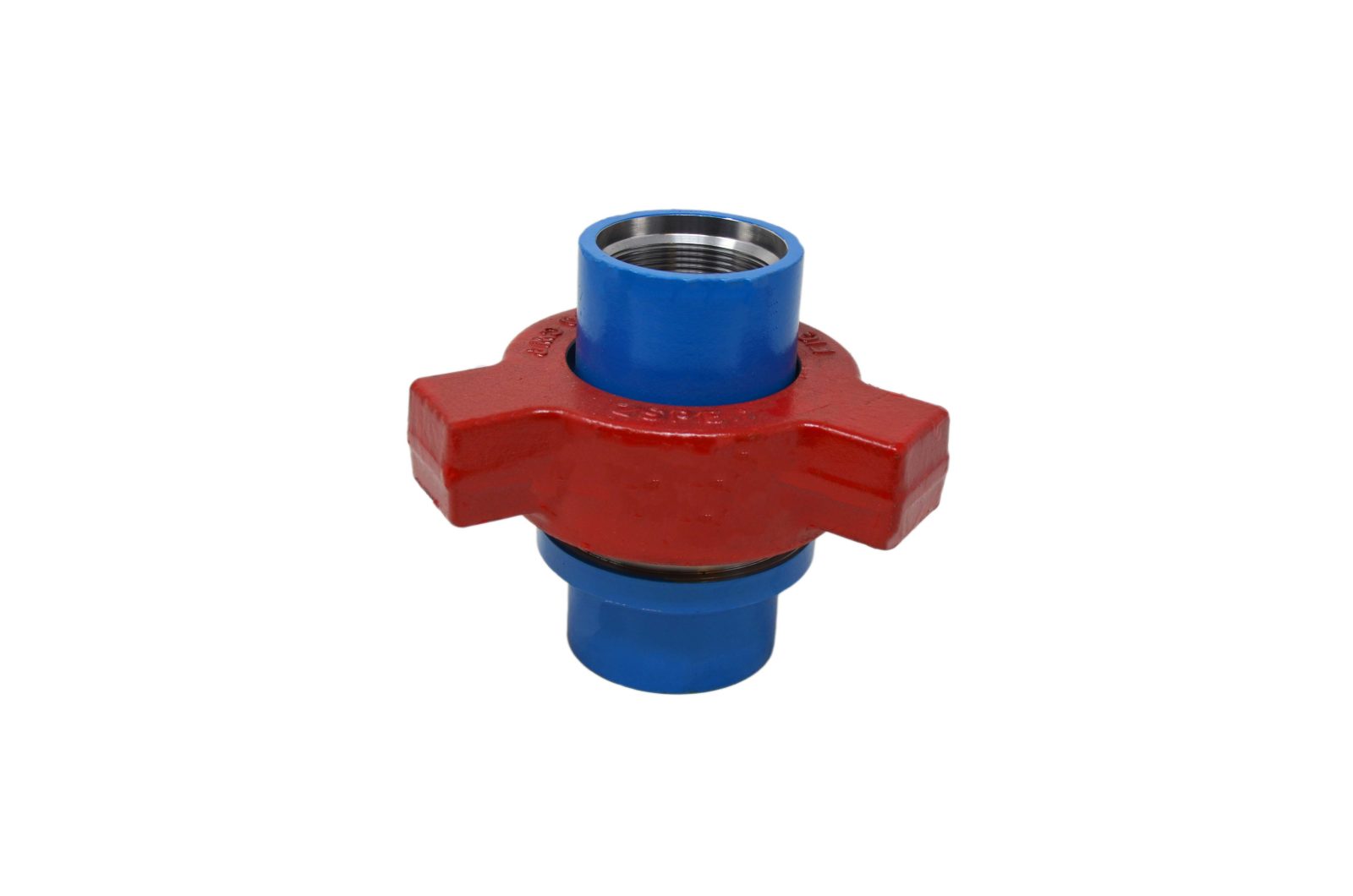

ZSPEC Figure 1002 Hammer Unions are suitable for oil, gas, water, and air service up to 10,000 PSI NSCWP (5,000 PSI NSCWP for 5″ Figure 1002 threaded unions and 7,500 PSI NSCWP for the 5″ and 6″ Figure 1002 butt weld unions). On sizes 1″ thru 4″, this union has a replaceable Buna-N lip seal ring installed on the female sub, which serves as the primary seal. On sizes 5″ and 6″, there is an ORing installed on the male sub. Threaded and butt weld end connections are available.
| Size | |
|---|---|
| Pressure | 1" thru 4" – 10,000 PSI NSCWP, 5" – 6" Butt Weld – 7,500 PSI NSCWP, 5" Threaded – 5,000 PSI NSCWP |
| End Connection | |
| Color |
Additional Info
Standard Service
Sub Material: Threaded – AISI 4130 (1″-5″), Butt Weld – AISI 4130 (2″-6″)
Nut Material: Threaded – AISI 4140 (1″-5″), Butt Weld -AISI 4140 (2″-6″)
Available upon request:
Threaded – Female sub, male sub, snap ring, ORing, and nut components
Butt Weld – Female and male sub components in schedule XXH; schedule 160 unions and components in select sizes
Datasheet File
Hammer Unions
ZSPEC® Hammer Unions are manufactured from high quality forgings and castings. The figure appropriate materials are selected for each respective figure number. Threaded and Butt Weld end connections are both readily available. Material traceability and MTRS are available on all hammer unions.
