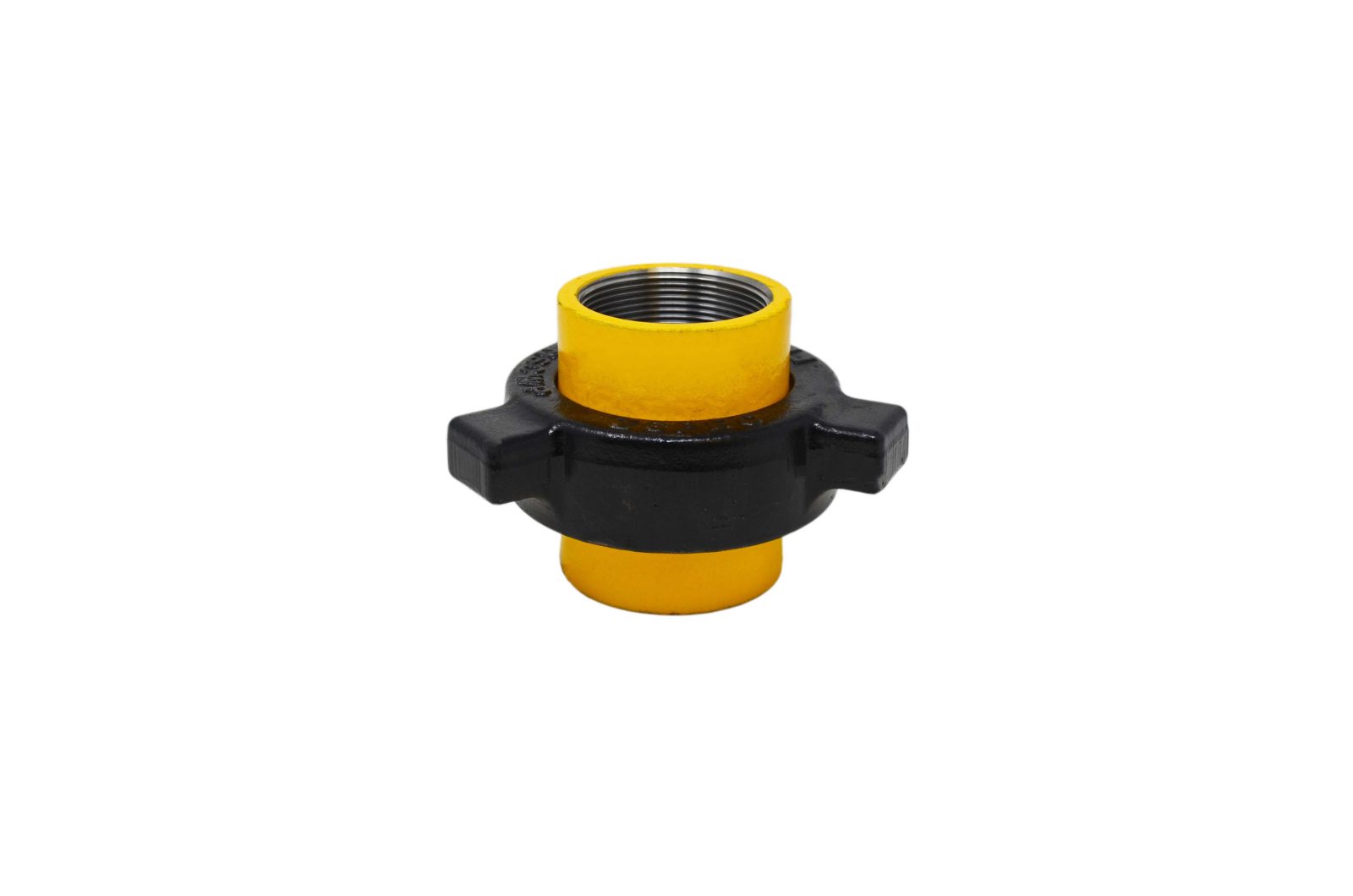

Figure 100
Product Description
ZSPEC Figure 100 Hammer Unions are general-purpose unions that feature a metal-to-metal sealing surface and are suitable for oil, gas, water, and air service up to 1,000 PSI NSCWP. Threaded and butt weld end connections are available.
Additional Info
Standard Service
Sub Material: Threaded – A105 (2″-3″), A395 (4″-8″), Butt Weld – A105 (2″-8″)
Nut Material: Threaded – A105 (2″-3″), A395 (4″-8″), Butt Weld – A105 (2″-3″, 6″), A395 (4″), A216 WCB (8″)
Available upon request:
Threaded: Female sub, male sub, and nut components
Butt Weld: Female and male sub components in schedule 80; schedule 40 unions and components in select sizes
Datasheet File
Hammer Unions
ZSPEC® Hammer Unions are manufactured from high quality forgings and castings. The figure appropriate materials are selected for each respective figure number. Threaded and Butt Weld end connections are both readily available. Material traceability and MTRS are available on all hammer unions.
ZSPEC Hammer Unions
More Than “Just in Time”
Managing costs is important, but when managing those costs starts to impact your business, the saving is lost. ZSPEC helps reduce your operating costs by having our products ready to ship. This means that you don’t get hurt by a “Just in Time” ideology, and can spend more time and money focusing on your customers.
